Phase One's Schneider LS leaf-shutter lenses for product & flash

Most cameras hide their shutter in the body — a focal-plane curtain that sweeps across the sensor. That design has a hard limit: above a certain speed (often around 1/200s) the curtains never fully open at once, so a flash can only illuminate part of the frame. For product and tabletop work, where you're mixing strobe with ambient and fighting reflections, that ceiling is a real constraint. The Schneider Kreuznach LS lenses for the Phase One XF solve it the old, expensive, beautiful way: each lens carries its own shutter — a leaf shutter — right inside the glass.

What it is

"LS" stands for leaf shutter: a ring of overlapping blades, mounted in the lens itself, that opens from the center and closes back to it. Schneider Kreuznach designs and Mamiya builds them, and on the Phase One XF system they're the lenses with the unmistakable blue accent ring — the "Blue Ring" line. Because the shutter sits in the lens and opens fully at every speed, the entire frame is exposed at once, which is what unlocks fast flash sync. The headline facts:

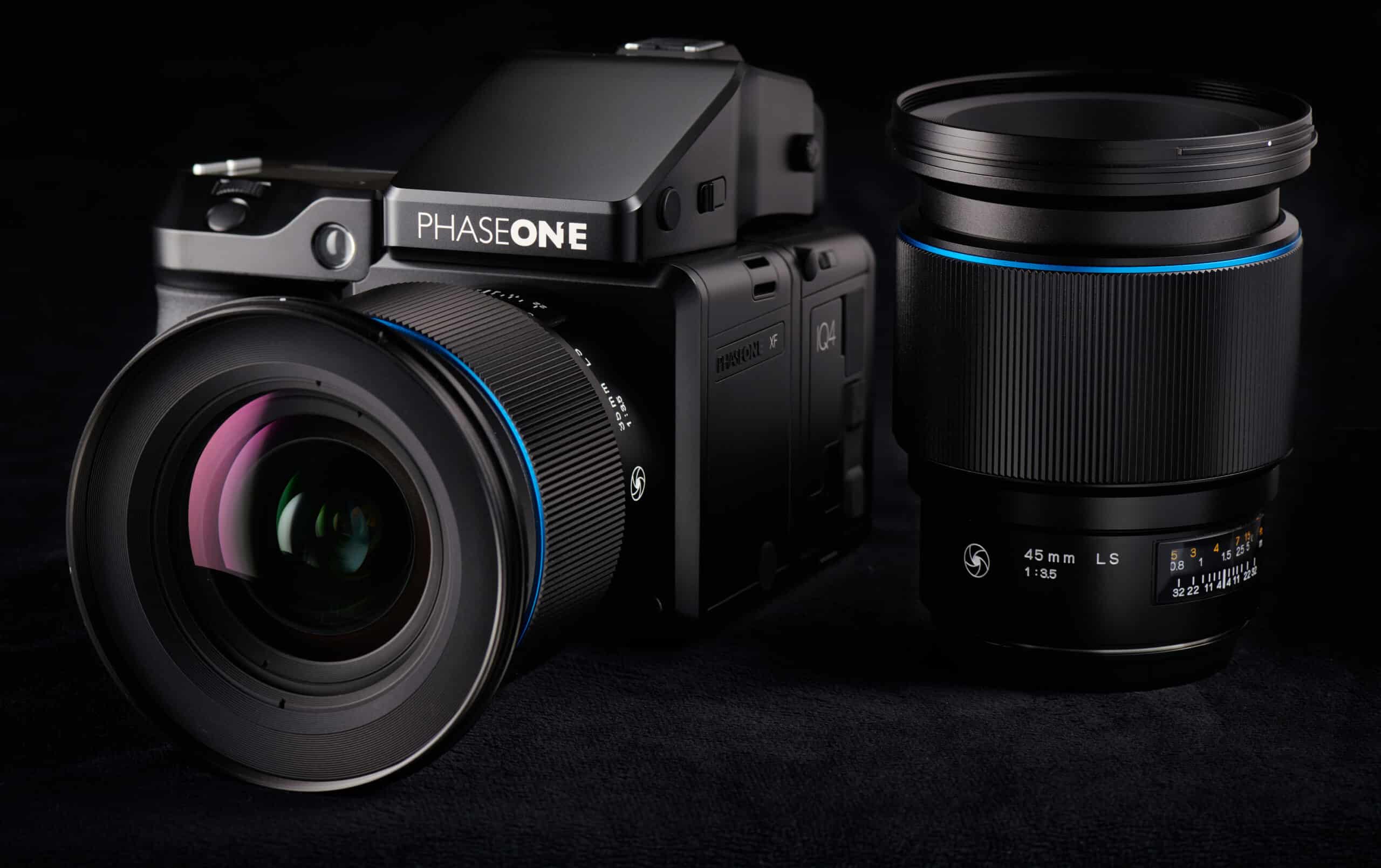

The LS range covers the focal lengths a studio actually needs, from wide to long tele. The lenses we rent span the line — 35mm f/3.5, 45mm f/3.5, 55mm f/2.8, 80mm f/2.8, 110mm f/2.8, 120mm f/4 Macro, 150mm f/3.5, and 240mm f/4.5 — so you can match the focal length to the subject (and the working distance the set allows) without leaving the leaf-shutter ecosystem.

Why creators reach for it

Flash sync up to 1/1600s

This is the whole reason the line exists. On the XF, the LS lenses sync flash at speeds up to 1/1600s — roughly three stops faster than a typical focal-plane sync. That headroom changes what you can do on a product set: you can keep your strobes at full punch while shutting out ambient and continuous-light spill, freeze a falling-liquid or splash beat cleanly, and shoot wider apertures under bright modeling lights without overexposing. When you're balancing a hard key against a window or a video wall, that extra range is the difference between a clean plate and a fight.

Reflection and motion control on product sets

Tabletop and packaging work lives on control — of reflections, of spill, of the exact instant a pour or a drip is caught. A fast leaf-shutter sync lets you use shutter speed as a creative lever against ambient instead of being pinned to one sync speed, so you can sculpt how much of the room's light contributes versus how much comes from your strobes. For liquids, cosmetics, and anything in motion, freezing the action with flash at 1/1600s gives you crisp edges no continuous source can match.

Sharpness that earns the medium format

Schneider Kreuznach builds these to resolve the detail a high-resolution Phase One back demands. On a 100MP-plus capture, the lens has to keep up corner-to-corner, and the LS primes are engineered for exactly that — which is the point of shooting medium format for product in the first place. Paired with a Phase One IQ back, the system delivers files with the resolution and tonality that catalog, jewelry, and luxury work is sold on.

How it fits a studio workflow

The Phase One XF with LS glass is a tethered, deliberate, studio-first system — exactly the kind of build our studio is set up to support. The workflow tends to look like this:

• Tether into Capture One. The XF lives on a tripod, tethered to a large display, so every frame lands at full resolution for the team to inspect — critical when a single product crop fills a page.
• Light with flash, control with the leaf shutter. Set your strobes for the look, then use the fast sync to dial ambient in or out without touching the lights.
• Match the focal length to the table. The 120mm Macro covers true close-up detail; the longer 150mm and 240mm give you reach and compression for cleaner backgrounds and tighter reflection control.
• Stop down for depth, sync stays fast. Unlike focal-plane sync, you keep the flash-sync advantage across shutter speeds, so depth-of-field and ambient decisions stay independent.

Setup considerations

A leaf-shutter system trades some speed and convenience for control. The LS primes are not fast-aperture lenses — most sit between f/2.8 and f/4.5 — because the priority is resolving power and flash performance, not shallow depth of field, and on a product set you're usually stopping down anyway for front-to-back sharpness. Plan for a tripod and a tether as the default, not the exception; this is a methodical system, and it rewards a built set over run-and-gun. If your work is luxury goods, packaging, food, jewelry, or anything where flash control and resolution decide the sale, the LS line is the tool the look is built on. If you mainly need a long telephoto for a clean reflection angle, reach for the 150mm or 240mm; for the tightest detail, the 120mm Macro.

When to rent it instead of buying

A Phase One XF body, a digital back, and a set of Schneider LS primes is one of the most capital-intensive systems in photography — easily the cost of a vehicle, often more. For all but full-time medium-format product studios, renting is the rational way to put it on a job:

• The campaign justifies it — bill a single LS lens (or several) to a luxury, catalog, or packaging shoot and return it when you wrap.
• You need a specific focal length — rent just the 120mm Macro or the 240mm for one product table without owning the whole line.
• You shoot medium-format product occasionally — a handful of high-end sessions a year doesn't justify owning a leaf-shutter system.
• You're already in the studio — add the XF and LS glass to a studio booking and shoot it tethered on a built set.

We rent the Schneider LS line across the XF focal lengths so you can match the lens to the subject — wide for sets, normal for packaging, the 120mm Macro for true detail, and the long teles for reflection control — all on the same leaf-shutter system. Add the Phase One body and back to complete the build.
